Access Control List (ACL) Simlet


acl2

An administrator is trying to ping and telnet from Switch to Router with the results shown below:

acl2result


For this question we only need to use the show running-config command to answer all the questions below:

Router>enable
Router#show running-config

p1

p2

p3

p4




Question 1

Which will fix the issue and allow ONLY ping to work while keeping telnet disabled?

A. Correctly assign an IP address to interface fa0/1
B. Change the ip access-group command on fa0/0 from “in” to “out”
C. Remove access-group 106 in from interface fa0/0 and add access-group 115 in.
D. Remove access-group 102 out from interface s0/0/0 and add access-group 114 in
E. Remove access-group 106 in from interface fa0/0 and add access-group 104 in


Answer : E

Explanation:

a1

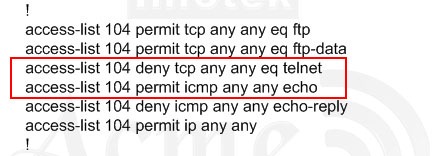

The question was not about FTP so skip line #1 and line #2.
The line #3 denies telnet traffic and line #4 permits icmp-echo traffic.
Line #5 denies echo-reply traffic. If any device pings a device that attached to Fa0/0, the packet will be denied.
Line #6 permits all other traffic.




Question 2:

What would be the effect of issuing the command ip access-group 114 in to the fa0/0 interface?

A. Attempts to telnet to the router would fail
B. It would allow all traffic from the 10.4.4.0 network
C. IP traffic would be passed through the interface but TCP and UDP traffic would not
D. Routing protocol updates for the 10.4.4.0 network would not be accepted from the fa0/0 interface

Answer: B

Explanation:

a2

There is only one command that is associated with access-list 114 and it is access-list 114 permit ip 10.4.4.0 0.0.0.255 any. This command will permit traffic from 10.4.4.0 /24 network.




Question 3:

What would be the effect of issuing the command access-group 115 in on the s0/0/1 interface?

A. No host could connect to Router through s0/0/1
B. Telnet and ping would work but routing updates would fail.
C. FTP, FTP-DATA, echo, and www would work but telnet would fail
D. Only traffic from the 10.4.4.0 network would pass through the interface

Answer: A


Explanation:

a4


The above command will only the IP (0.0.0.0). Also there is no such IP address exists.

The wildcard mask of access-list 115 is 255.255.255.0, means that only host with IP addresses x.x.x.0 will be accepted. If the 4th part of an IP address is 0, then definitely it would be a network address. So no host can communicate with other network using S0/0/1 interface.

But it will accept the packet with source IP address – 10.10.0.0/8. The 4th octet is 0, and is not a network address but a valid IP address. So confusion... confusion... Anyhow other 3 choices (B, C, D) will definitely not the answer and Choice A is closest to the result, So the Answer is A.
