Drag and Drop Questions

Question 1
Drag the security feature on the left to the specific security risks they help protect against on the right. (Not all options are used.)



Answer :





Question 2
Routing has been configured on the local router with these commands:

Local(config)#ip route 0.0.0.0 0.0.0.0 192.168.1.1
Local(config)#ip route 10.1.0.0 255.255.255.0 192.168.2.2
Local(config)#ip route 10.1.0.0 255.255.0.0 192.168.3.3

Drag each destination IP address on the left to its correct next hop address on the right



Answer:





Question 3
The left describes the types of cables, while the right describes the purposes of the cables.
Drag the items on the left to the proper locations. (Not all items can be used.)




Answer:




Question 4

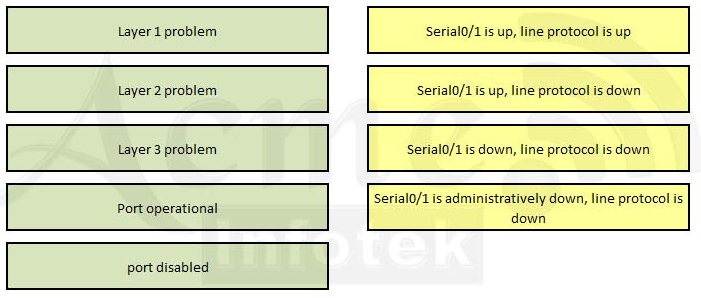

Drag each category on the left to its corresponding router output on the right. Each router output line is in the result of a show ip interface command. (Not all categories are used.)

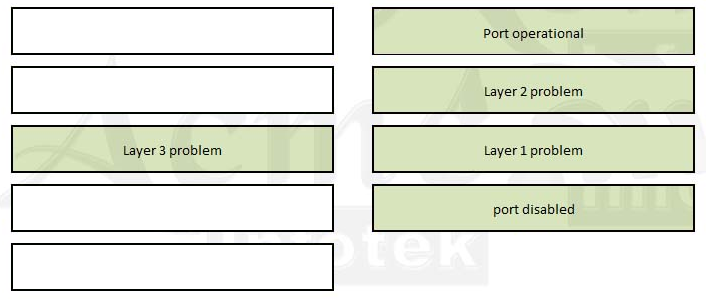

Answer:





Question 5

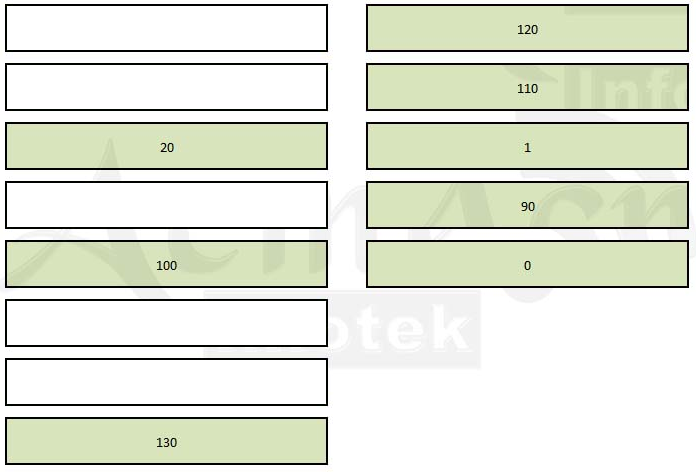

Drag the Cisco default administrative distance to the appropriate routing protocol or route (Not all options are used.)





Answer:


5 Responses so far.

  1. Anonymous says:

    Can please explain Q2?

  2. Anonymous says:

    Q2, following the mask in each static route:
    10.1.0.x go to 192.168.2.2 (next hop)
    10.1.x.x go to 192.168.3.3
    x.x.x.x go to 192.168.1.1

    A little confusing because 10.1.0.x is into 10.1.x.x, but also in x.x.x.x
    but the router will choise the IP closed to the network part.

  3. Anonymous says:

    can any1 explain how Q2.???its nt completely understood??

  4. kozmikz says:

    Remember the routing table process more specific routes first. Another way is to think that the routing table process routes with more bits in the network part of the address first. So a /32 will be process before a /31 and a /31 before a /30 and …
    R1(config)# ip route 0.0.0.0 0.0.0.0 192.168.1.1
    R1(config)# ip route 10.1.0.0 255.255.255.0 192.168.2.2
    R1(config)# ip route 10.1.0.0 255.255.0.0 192.168.3.3
    So when these routes get put in to the routing table more specific routes get processed first. So what you need to do is look at the three routes and go okay what is my most specific.
    In this case it will be the ip route 10.1.0.0 255.255.255.0 192.168.2.2 so anything in then 10.1.0.X/24 network will go to 192.168.2.2.
    Then work your way out so the next least specific route is the ip route 10.1.0.0 255.255.0.0 192.168.3.3 which is saying anything to the 10.1.X.X/16 network goes to 192.168.3.3 So in this case it will be anything that is in 10.1.X.X/16 but isn’t in 10.1.0.X/24 (because we have a more specific route) goes into this box
    Finally you have your default route ip route 0.0.0.0 0.0.0.0 192.168.1.1 which is saying anything not listed needs to go to me so put your remaining entries into this box.

  5. Anonymous says:

    HHGG
