CCNA RIPv2 Simulation

rip topology
rip ins

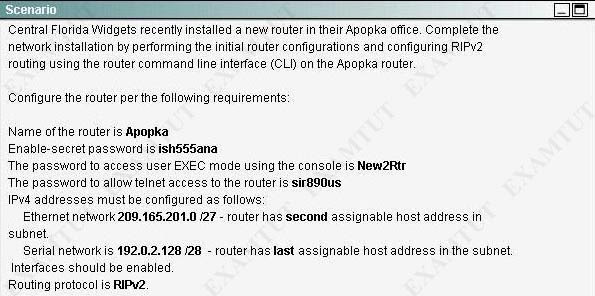

rip sce

Central Florida Widgets recently installed a new router in their Apopka office. Complete the network installation by performing the initial router configurations and configuring RIPv2 routing using the router command line interface (CLI) on the Apopka router.

To configure the router (Apopka) click on the console host icon that is connected to a router by a serial console cable (shown in the diagram as a dashed black line).

Each of the windows can be minimized by clicking on the [-]. You can also reposition a window by dragging it by the title bar.

The “Tab” key and most commands that use the “Control” or “Esc” keys are not supported and are not necessary to complete this simulation. The help command does not display all commands of the help system.

Configure the router per the following requirements:
Name of the router is Apopka
Enable-secret password is ish555ana
The password to access user EXEC mode using the console is New2Rtr
The password to allow telnet access to the router is sir890us
IPv4 addresses must be configured as follows:
Ethernet network 209.165.201.0/27 – router has second assignable host address in subnet.
Serial network is 192.0.1.128/28 – router has last assignable host address in the subnet.
Interfaces should be enabled. Routing protocol is RIP v2.

Answer:
Watch video in HD



Step 1: Change the Hostname

Router>enable
Router#configure terminal
Router(config)#hostname Apopka



Step 2: Configure enable secret password

Apopka(config)#enable secret cisco20


Step 3: Configure console password

Apopka(config)#line con 0
Apopka(config-line)#password RouterApass
Apopka(config-line)#login
Apopka(config-line)#exit



Step 4: Configure telnet (VTY) password

Apopka(config)#line vty 0 4
Apopka(config-line)#password scan180
Apopka(config-line)#login
Apopka(config-line)#exit



Step 5: Assign IP address for LAN and WAN interfaces

Note: With reference to the topology, interface Fa0/0 used to connected to Apopka LAN Switch and interface S0/0/0 used to connect to the router Tamba.
The IP address of Fa0/0 should be the second usable IP address of the subnet 209.165.200.0/27.

r5

From the about IP Calculator, the network address will be 209.165.200.0 and the broadcast address will be 209.165.200.31. The second assignable host address is 209.165.200.2

Apopka(config)#interface fa0/0
Apopka(config-if)#ip address 209.165.200.2 255.255.255.224
Apopka(config-if)#no shutdown
Apopka(config-if)#exit


The IP address of S0/0/0 must be the last IP address of the subnet 192.0.1.142/28.

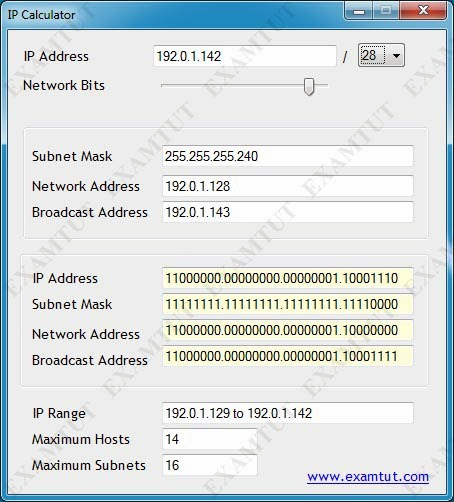

r6

Again using IP Calculator, we can find the last IP address of this subnet will be 192.0.1.142 and the subnet mask will be 255.255.255.240.

Apopka(config)#interface s0/0/0
Apopka(config-if)#ip address 192.0.1.142 255.255.255.240
Apopka(config-if)#no shutdown
Apopka(config-if)#exit



Step 6: Enable routing protocol RIPv2

Apopka(config)#router rip
Apopka(config-router)#version 2
Apopka(config-router)#network 209.165.200.0
Apopka(config-router)#network 192.0.1.0
Apopka(config-router)#end



Step 7: Save the configuration

Apopka#copy run start
Destination Filename [startup-config]: [ENTER]


The End
